2020 XL 140 HDEExtendable, steerable lowboy
$449,900
Located in Wisconsin. Used, and the unit pictured is the unit for sale. Sold as one five-piece XL Specialized combination. Tractor not included.
Or call (941) 395-0441. Pre-qualification is completed on our financing partner’s secure portal.
- 01XL 140 HDEHydraulic detachable extendable lowboy140,000 lbVIN …018968
- 02XL 100 JPSJeep100,000 lbVIN …018966
- 03XL 60 PMBStinger60,000 lbVIN …018969
- 04XL 21 PAPin-on axleIncludedVIN …018970
- 05XL 21 PAPin-on axleIncludedVIN …018967
- Complete package$449,900
Extendable main deck (well)
32′ 6″57′ 3″
Loading length, closed to fully extended+24′ 9″ of deck · see it extend
- Distributed capacity
- 140,000lb
- Concentrated in 10′, closed
- 120,000lb
- Loaded deck height, 6″ clearance
- 28″
Already movingthe heavy stuff
Real jobs, real loads, and this exact combination underneath them.

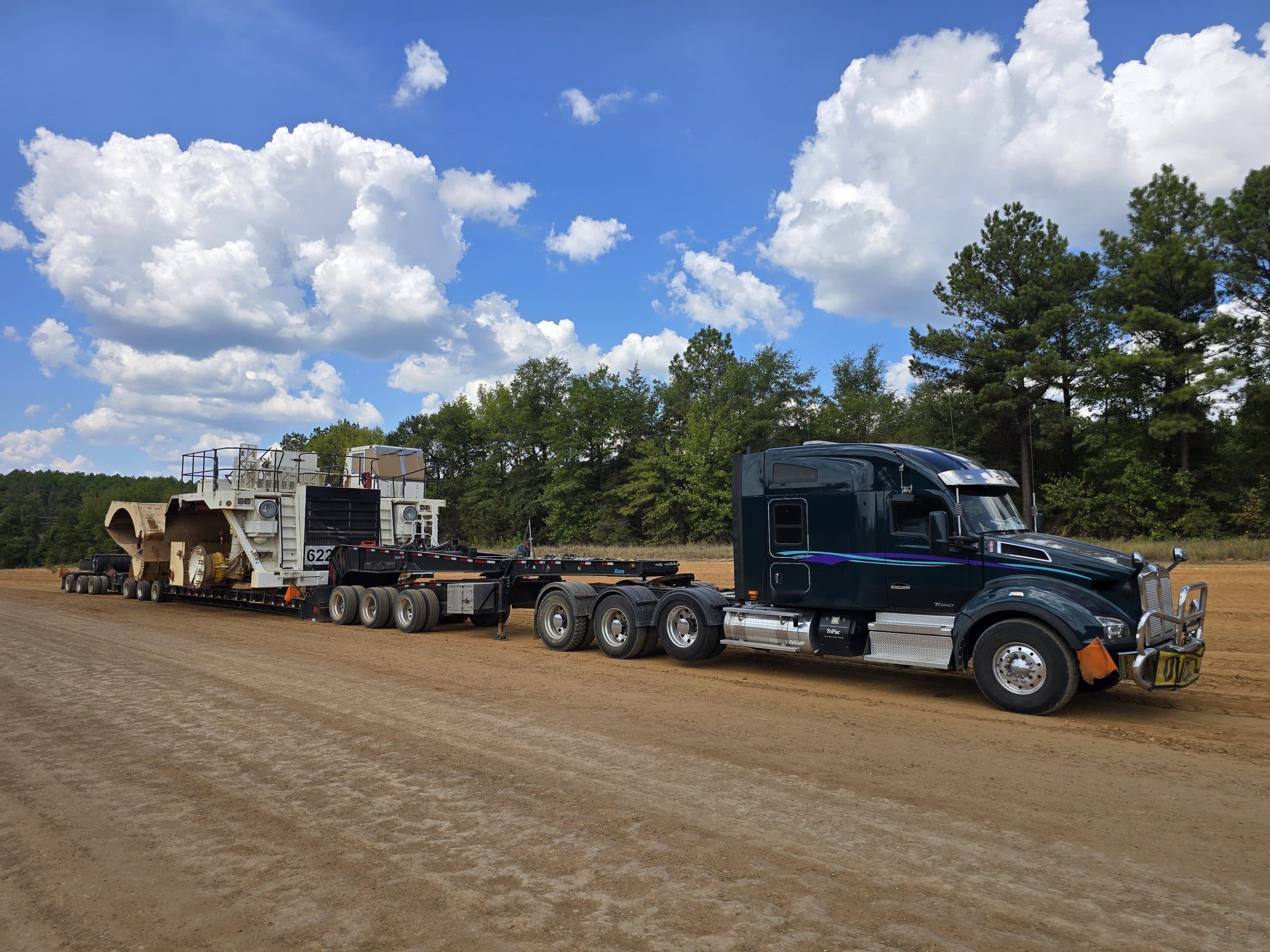

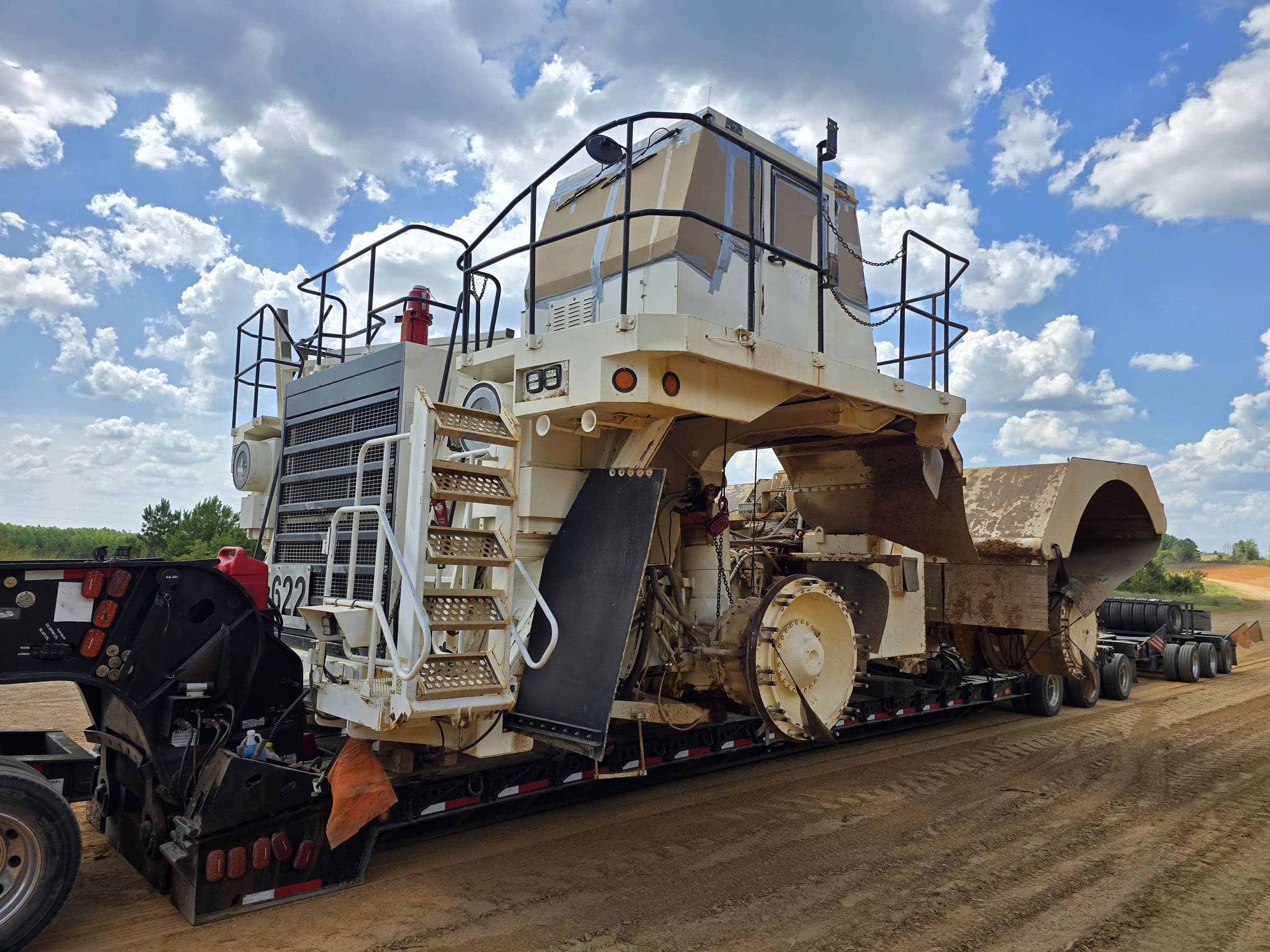

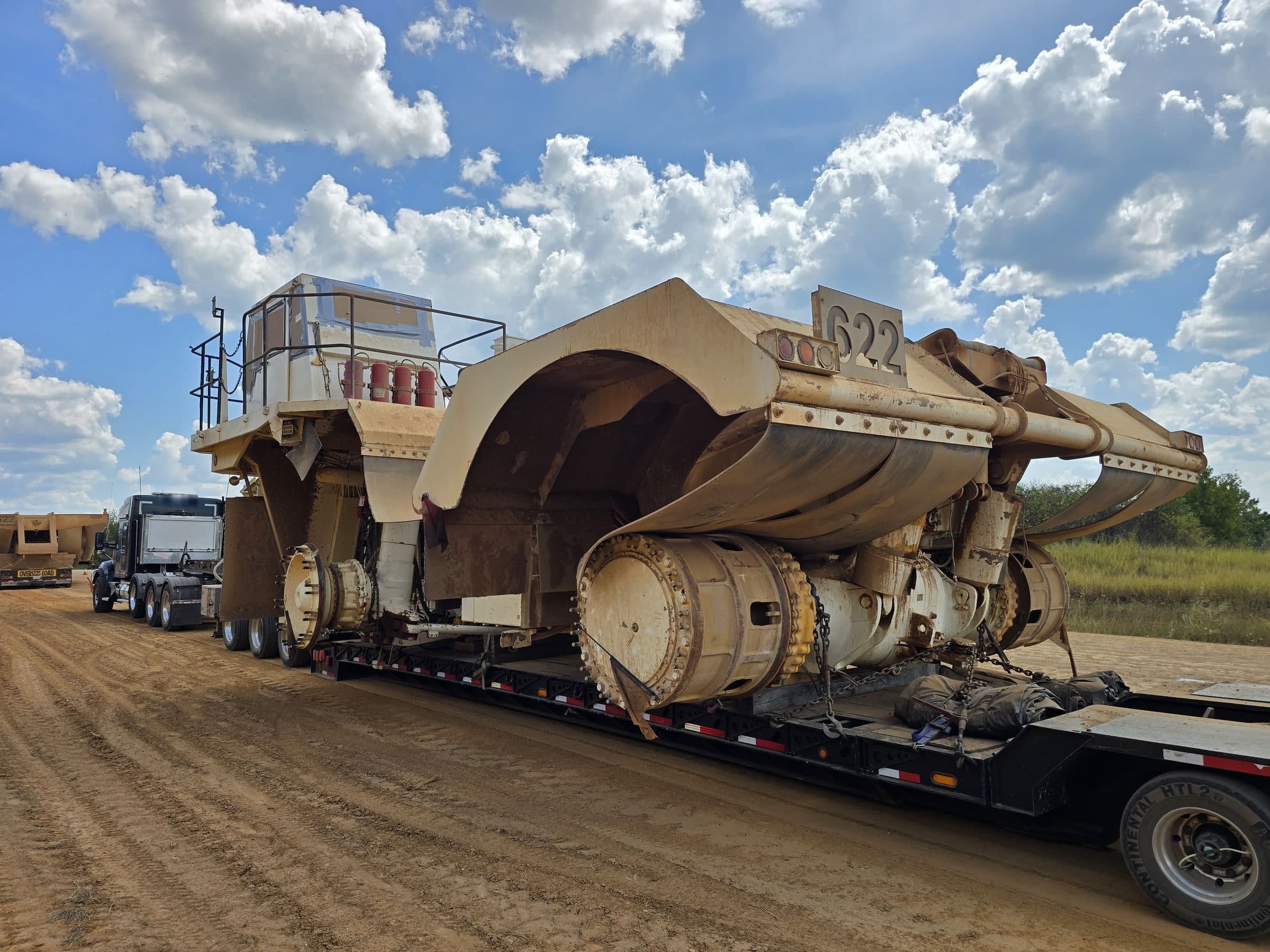

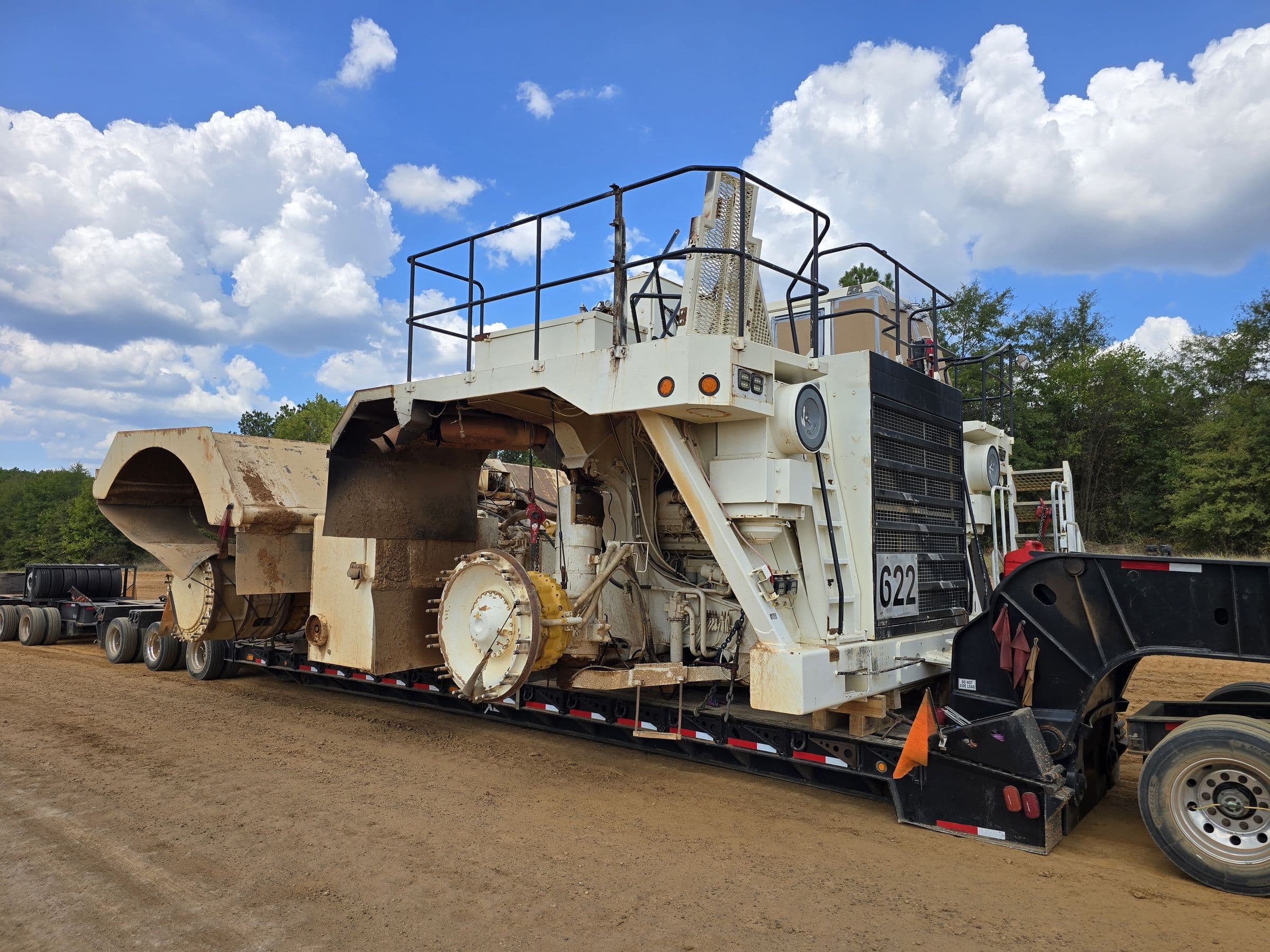

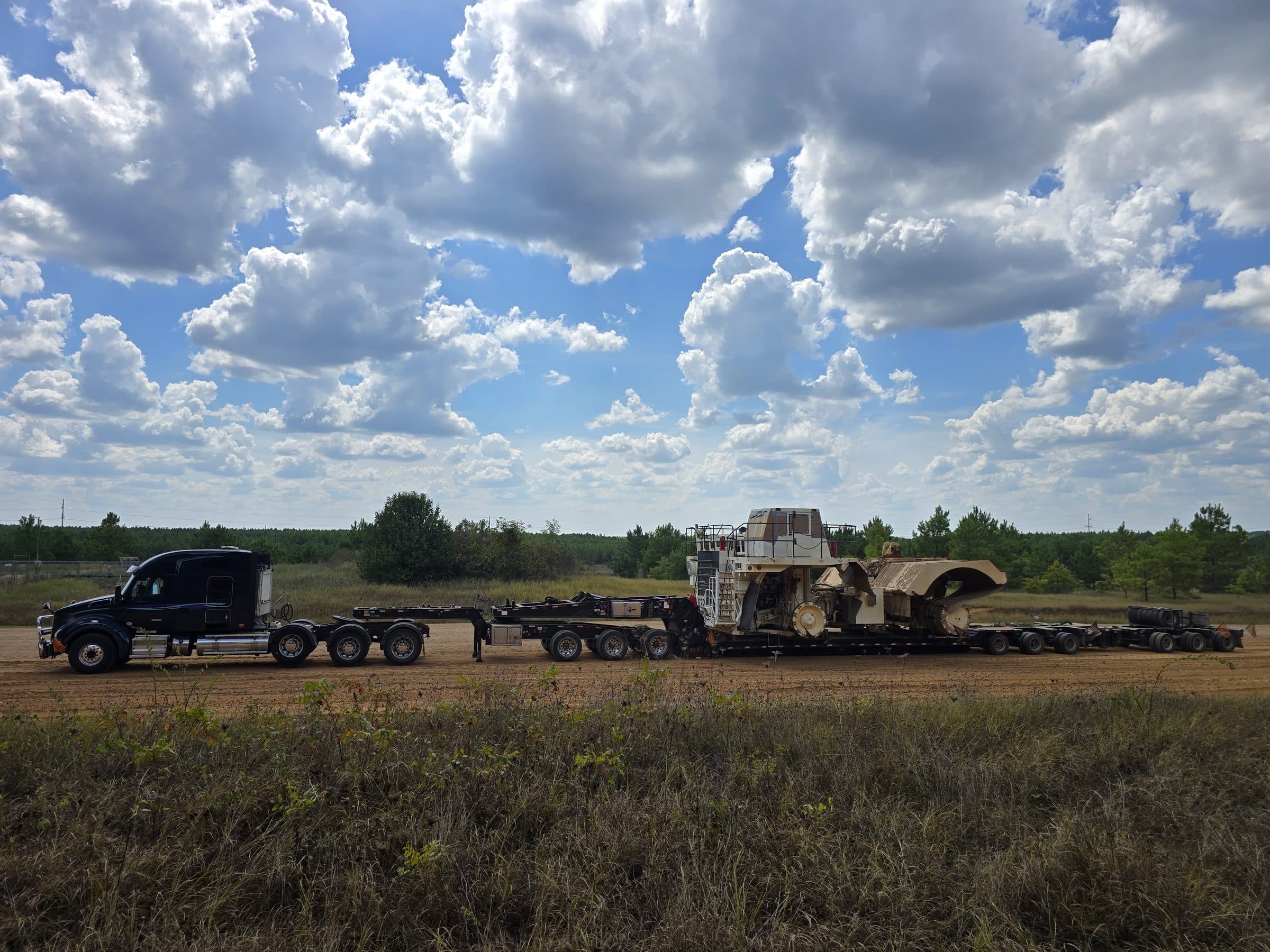

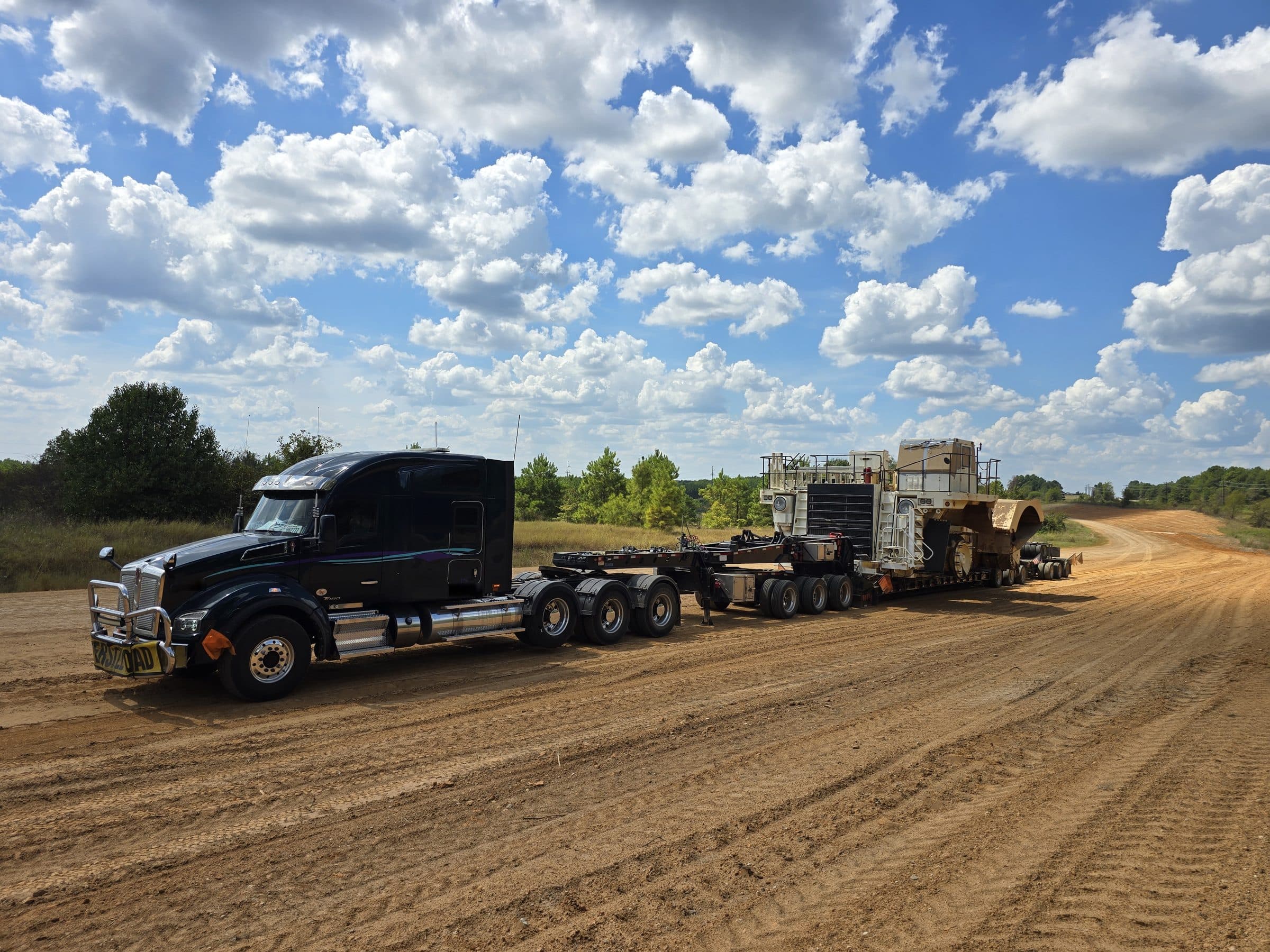

Mining haul-truck chassis
September 2026Wide, tall and dense: the chassis and its wheel ends rode the main deck behind the detachable neck.

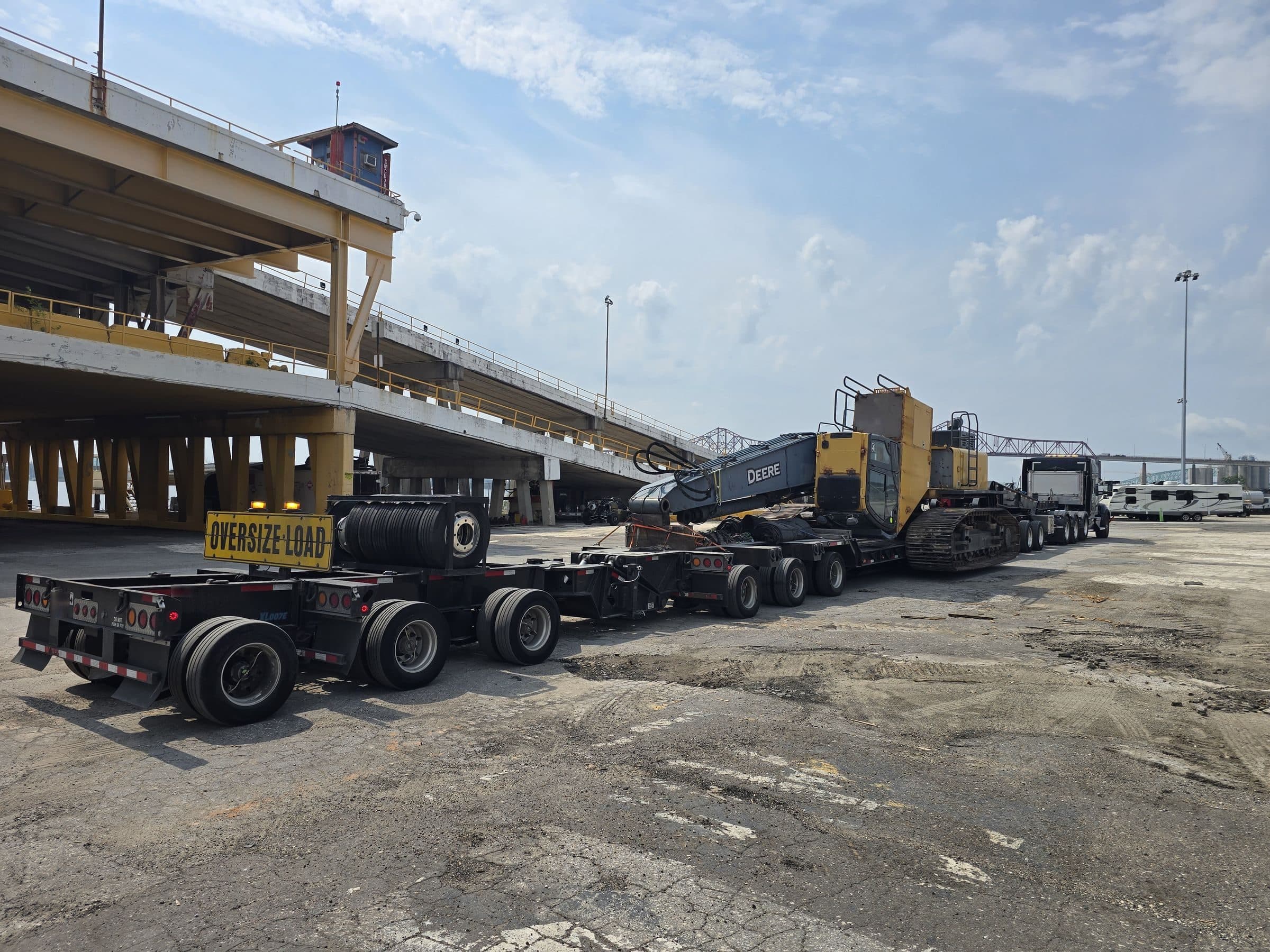

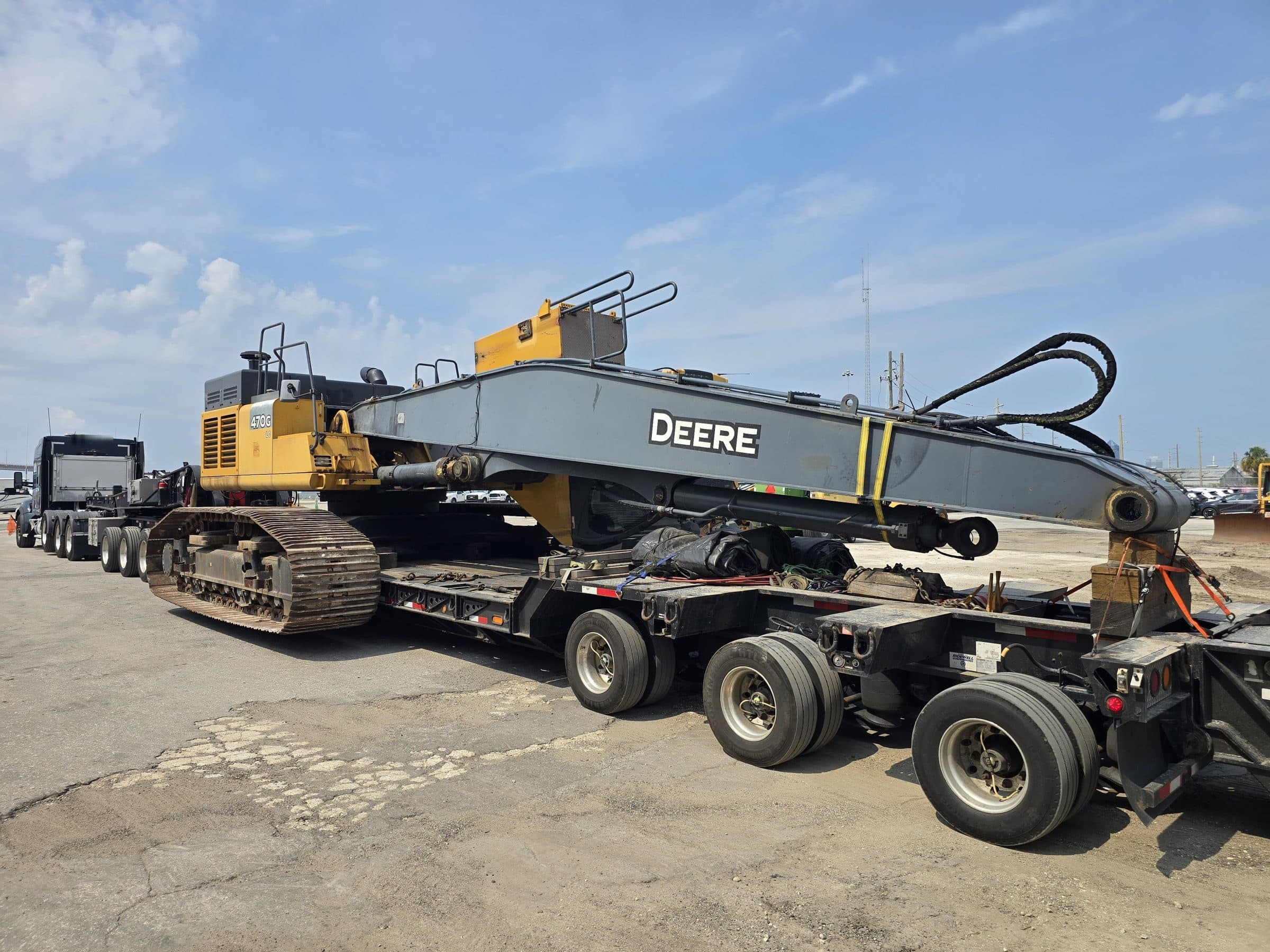

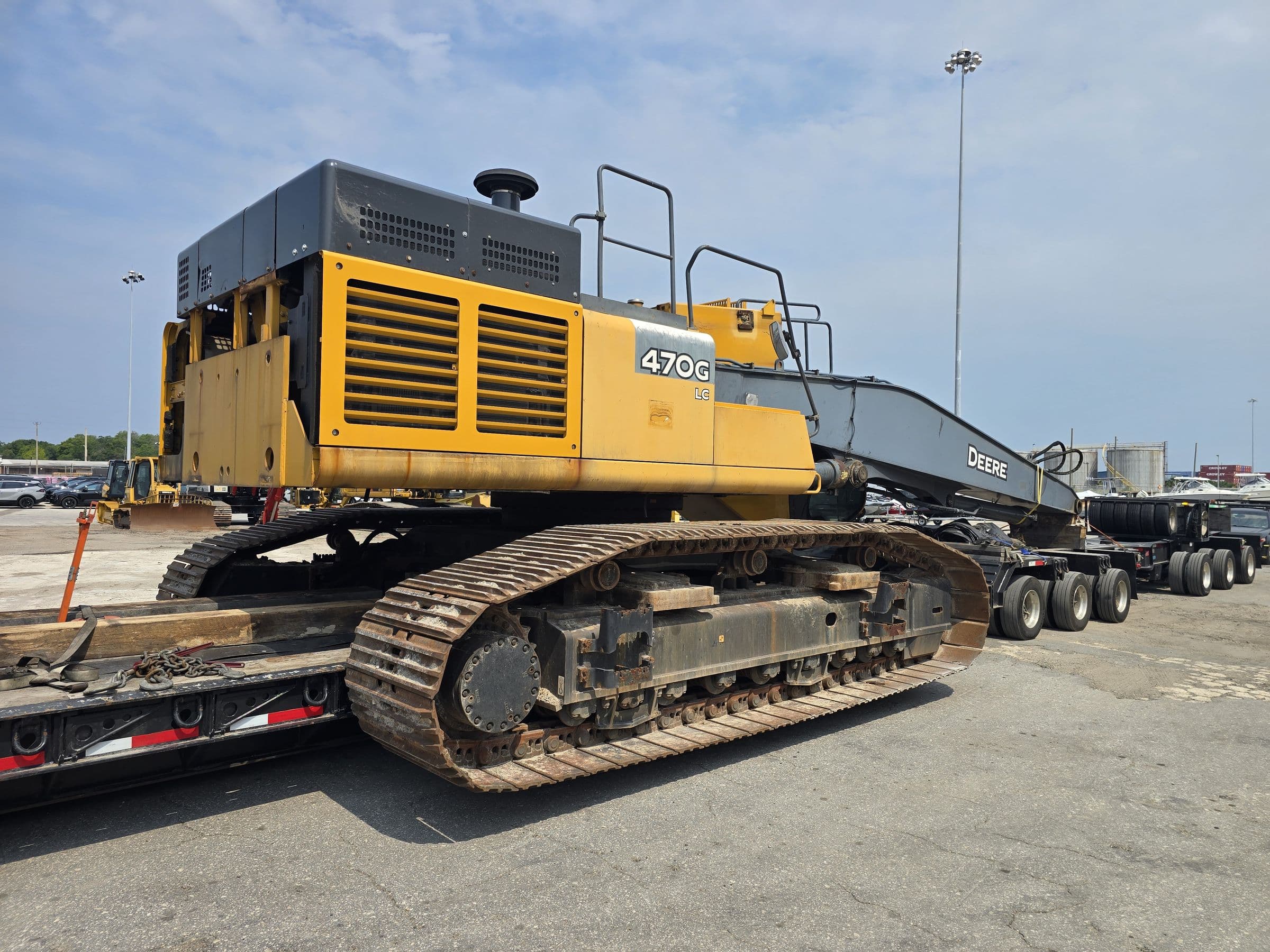

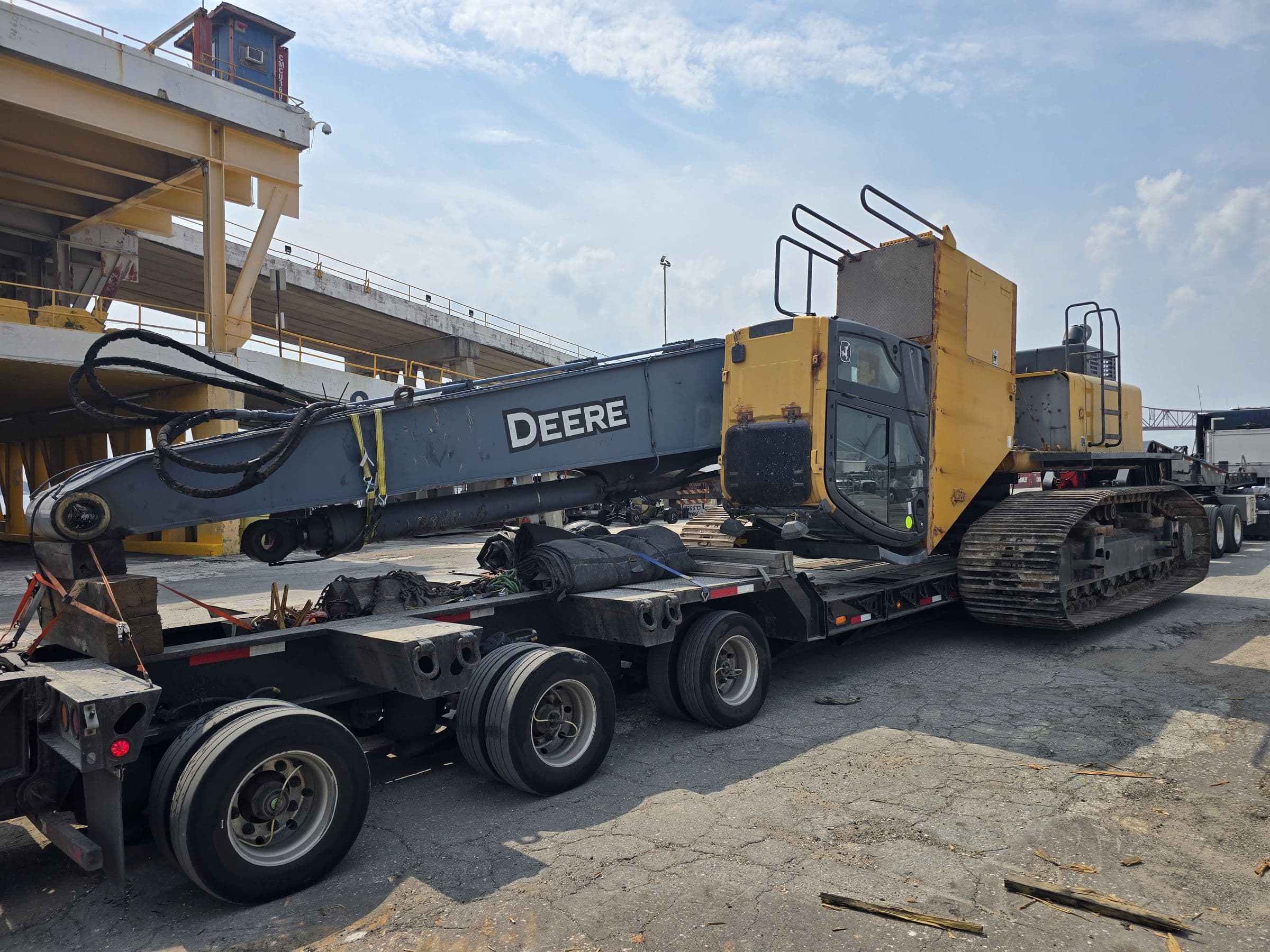

John Deere 470G excavator
July 2026A full-size excavator on tracks, with the boom carried back over the rear of the combination.

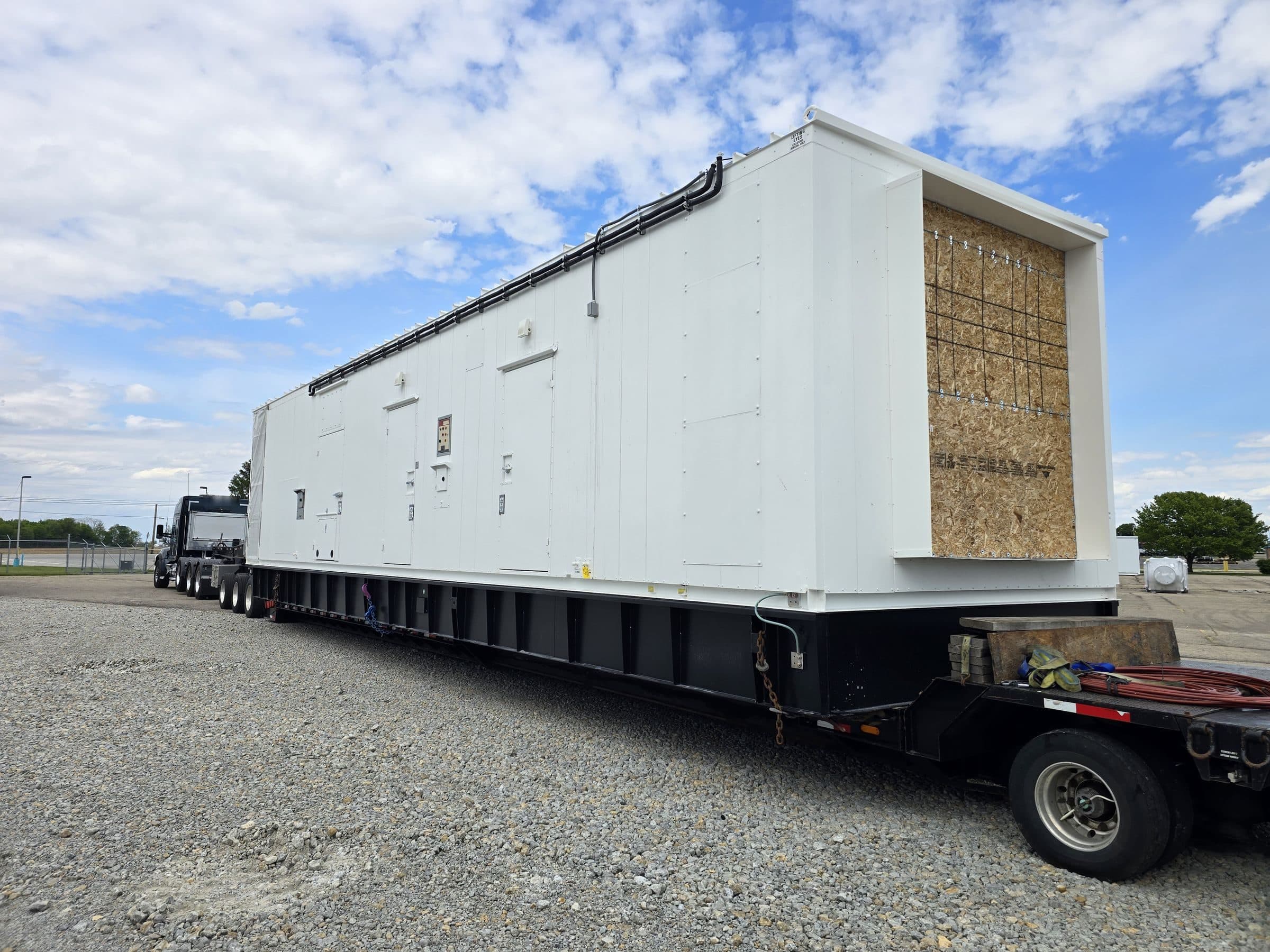

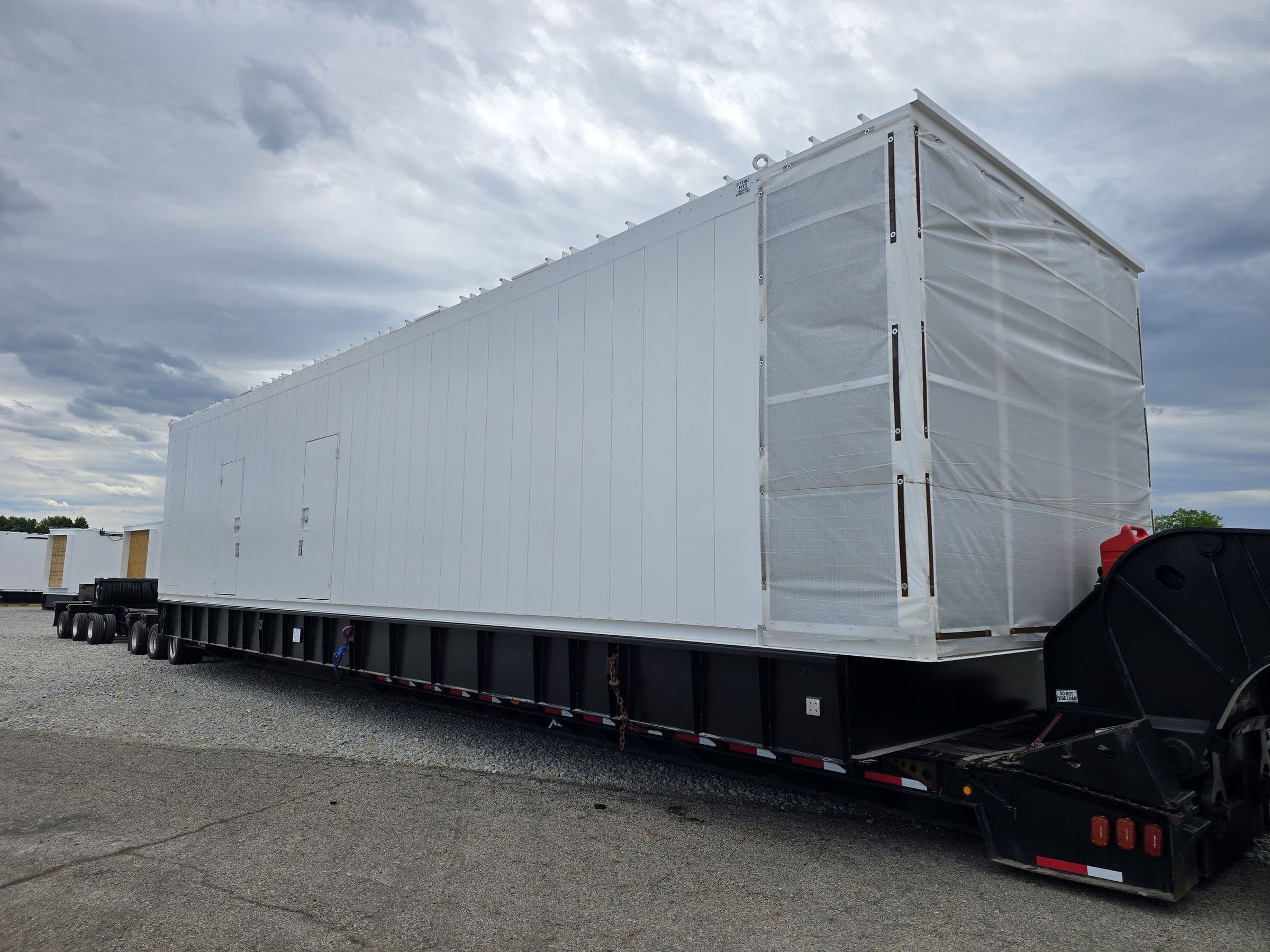

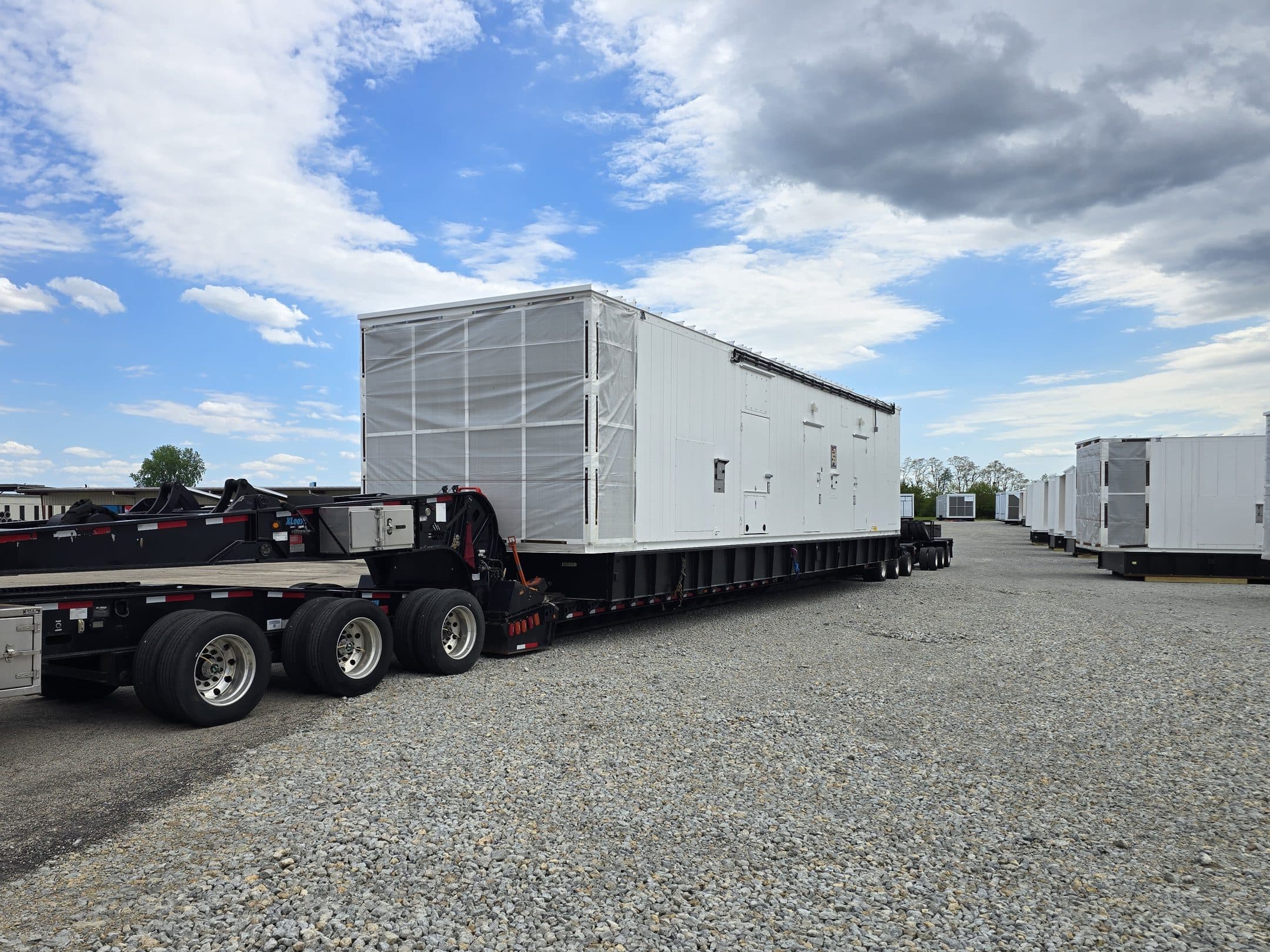

Power-generation enclosure
May 2026A long, building-style enclosure on the main deck, run as an oversize load.
Stretch the deckto fit the load
The well, the main deck where equipment loads, runs from 32′ 6″ closed to 57′ 3″ fully extended: 24′ 9″ of extra loading length for long machines and modules. The neck detaches for drive-on loading, and the deck sits at 28″ loaded with 6″ of ground clearance.
- Upper deck
- 13′ 8″
- Main deck (well)
- 32′ 6″
- Rear deck
- 16′ 1″
Well length
32′ 6″
Closed
Rated 120,000 lb concentrated in 10′ with the deck closed, and 140,000 lb distributed. The well is the main deck between the neck and the rear deck: the space where equipment is loaded. Schematic drawing: lengths and deck heights to scale; neck height, wheels and axle count are not.
Steer it from the cabor the pilot car
Hydraulically steered KGI KGF250 axles, worked by a wireless remote. Two transmitters are paired, one for the driver and one for the pilot car. Only one is active at a time, and each shuts itself off after 30 minutes.
Remote functions
- OnMaster on
- OffMaster off
- F1Steer leftHold to steer
- F2Steer rightHold to steer
- F3Not used
- F4Unlock / lock axles
F4 unclamps the axles for steering and latches, so it doesn’t need holding. The axles re-lock when the remote shuts down.
Steer axle
- Axle
- KGI KGF250 N-style hydraulic steer axle
- Beam capacity
- 25,000 lb per axle beam
- Steering angle
- Set at 30°
- Brakes
- 12¼″ × 7½″ drum, automatic slack adjusters
- Control
- Wireless remote, cab and pilot-car transmitters
All five units,by the numbers
From XL Specialized’s build records for these VINs. Take them with you: the two-page spec sheet has every figure, the photos and the price. The KGI axle drawings, steering schematic and remote instructions are available on request.
XL 140 HDE Hydraulic detachable extendable lowboy
VIN …018968- Overall length
- 62′ 3″ – 87′
- Overall width
- 102″
- Upper deck length
- 13′ 8″
- Main deck length
- 32′ 6″ – 57′ 3″
- Rear deck length
- 16′ 1″
- Loaded deck height
- 28″
- Ground clearance
- 6″
- Loaded rear height
- 38″
- Capacity, distributed
- 140,000 lb
- Capacity, concentrated
- 120,000 lb in 10′ (closed)
XL 100 JPS Jeep
VIN …018966- Overall length
- 29′ 6″
- Overall width
- 102″
- Upper deck length
- 13′ 2″
- Rear deck length
- 15′ 6″
- Loaded rear height
- 51″
- Capacity, distributed
- 100,000 lb
XL 60 PMB Stinger
VIN …018969- Overall length
- 19′ 7″
- Overall width
- 102″
- Rear deck length
- 19′ 7″
- Loaded rear height
- 38″
- Capacity, distributed
- 60,000 lb
XL 21 PA Pin-on axle
VIN …018970- Overall length
- 60″
- Overall width
- 102″
XL 21 PA Pin-on axle
VIN …018967- Overall length
- 59½″
- Overall width
- 102″
Manufacturer names are trademarks of their respective owners and are used for identification only. Ratings are the manufacturer’s; legal payload depends on your full combination, axle spacing and permits.
Walk around it
Real photos of this combination on the job. Tap any photo to page through them all.
Tell us whereit needs to go
Pick what you need and send the form. The unit is in Wisconsin; we’ll come back with its current condition and a delivered price to your yard.
- Price
- $449,900
- Location
- Wisconsin
